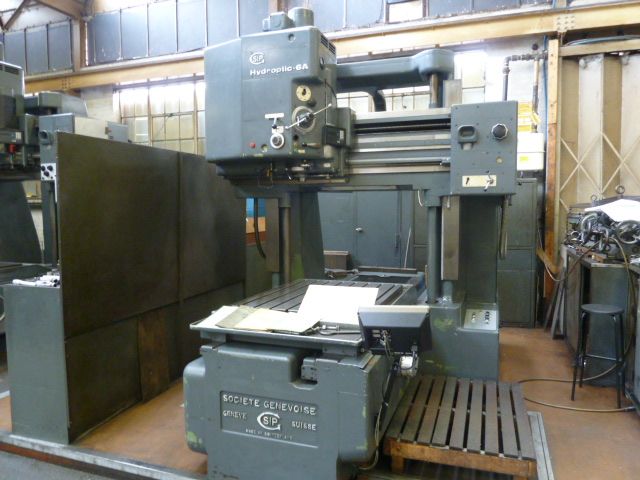

SIP Societe Genevoise Hydroptic 6A



Year:
Make:		SIP Societe Genevoise
Model:		Hydroptic 6A
Min - Max Height Under Spindle :		1000 - 200mm
Table Size:		1100 x 842mm
Traverses XYZ:		1000 x 700mm (XY)
Spindle Taper:		MT4
Spindle Speed:		40 - 2000rpm
Height under Cross-Slide:		955mm
Cross-Slide Rise and Fall:		795mm
Additional Equipment:		Rotoptic 6 800mm rotary optical table, P1-5 400mm Tilting R otary Table, Anilam DRO, automatic co-ordinate repeating system - Choice of 2 machines
Maximum Workpiece Size:		1000kg
Quill Stroke:		300mm
Distance Between Frames:		1100mm
Description:		DRO, Tooling

This machine is offered Ex works, loaded free on Lorry, Payment before collection/Delivery. (Subject to no prior sale.)
