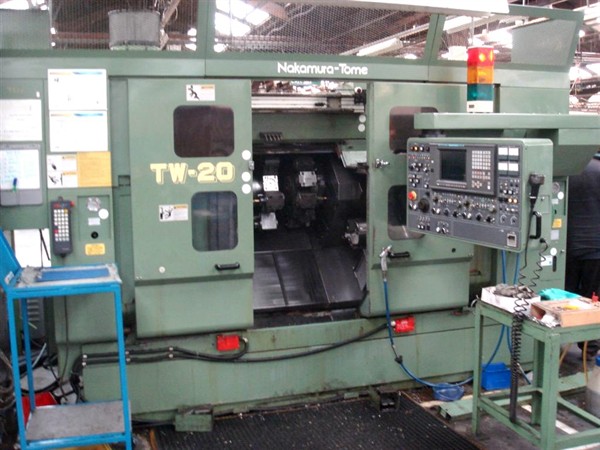

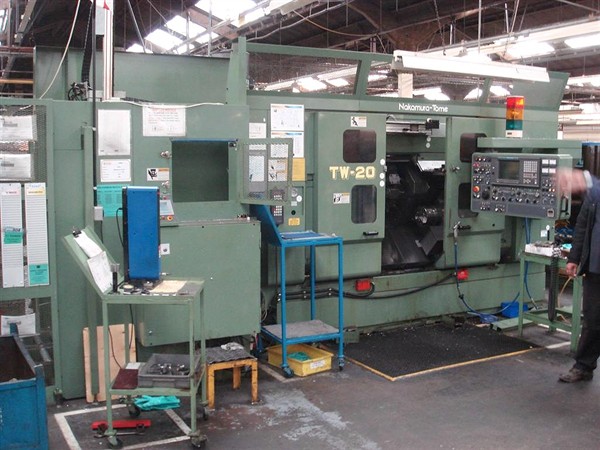

| Nakamura TW-20MM with Gantry Loader |  |

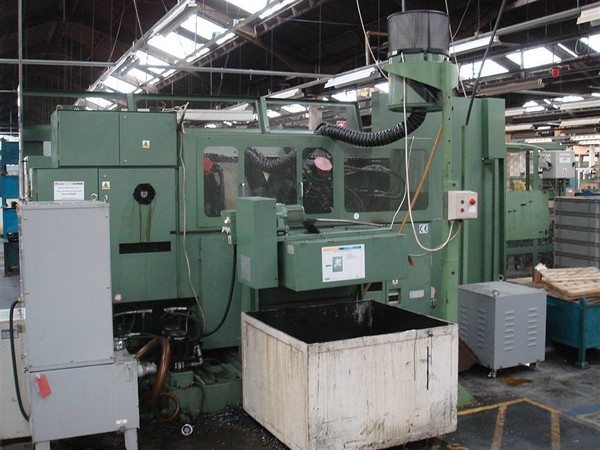

| | | | | | | Year: | | 1997 | | Make: | | Nakamura | | Model: | | TW-20MM | | Additional Equipment: | | Gantry Loader, C axis to both Spindles | | Bar Capacity: | | 51mm | | C axis: | | 0.001 Degree both Spindles | | Control: | | FANUC 16TT | | Maximum Cutting diameter: | | 270mm | | Maximum Cutting Length: | | 190mm | | Milling RPM: | | 6000rpm | | Number of axis controlled: | | 6 | | Spindle Motor Power: | | 18kW | | Spindle Nose: | | A2-5 | | Spindle Speed: | | 45 - 5000rpm | | Turret Positions: | | 12 Station each Turret (2 off) | | Description: | | Sub Spindle, Swarf conveyor, Coolant, 3 Jaw Chuck, Parts Loader, Twin Turret |
| | This machine is offered Ex works, loaded free on Lorry, Payment before collection/Delivery. (Subject to no prior sale.) |
|
