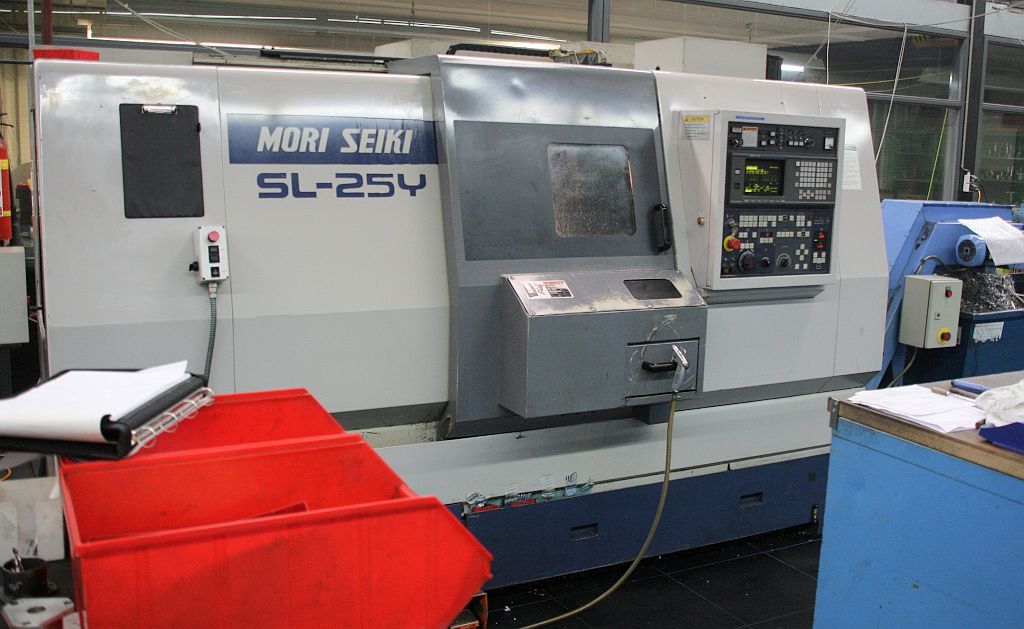

Mori Seiki SL-25Y CNC Lathe with C axis, Y axis & Milling



Year:		1995
Make:		Mori Seiki
Model:		SL-25Y
Maximum Cutting diameter:		260mm
Spindle Speed:		3500rpm
Spindle Motor Power:		15kW
Swing:		815mm
Maximum Machining Diameter:		260mm

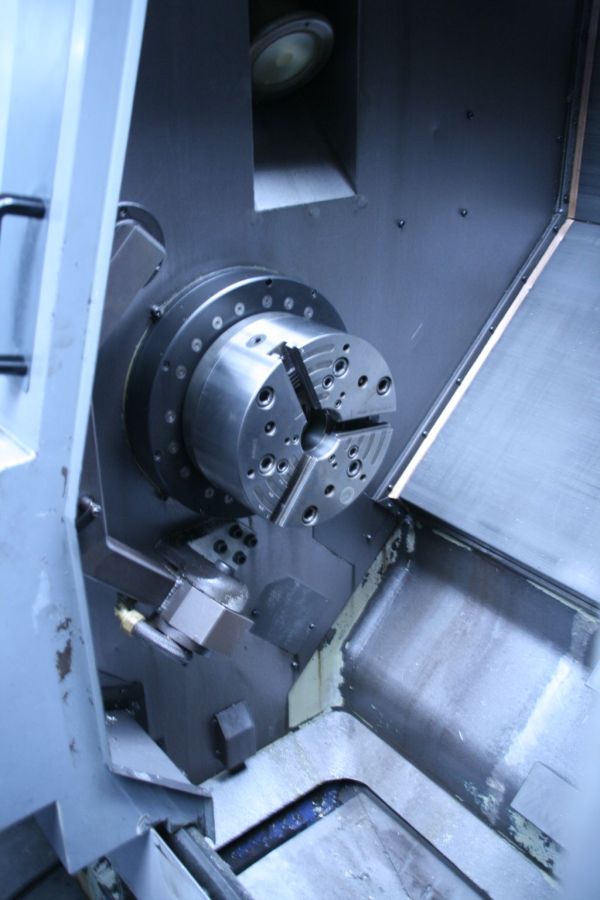

Chuck Size:		250mm
Bar Capacity:		65mm

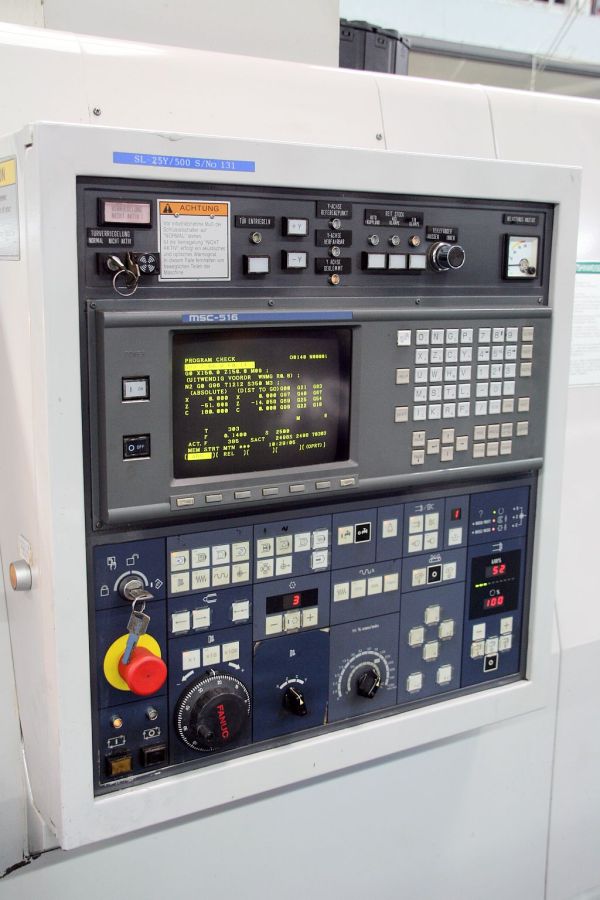

Control:		FANUC 16T (Mori MSC-516)
Y axis Travel:		100mm (+/- 50mm)
Swing over the Cross-slide:		620mm
Tailstock Taper:		MT5

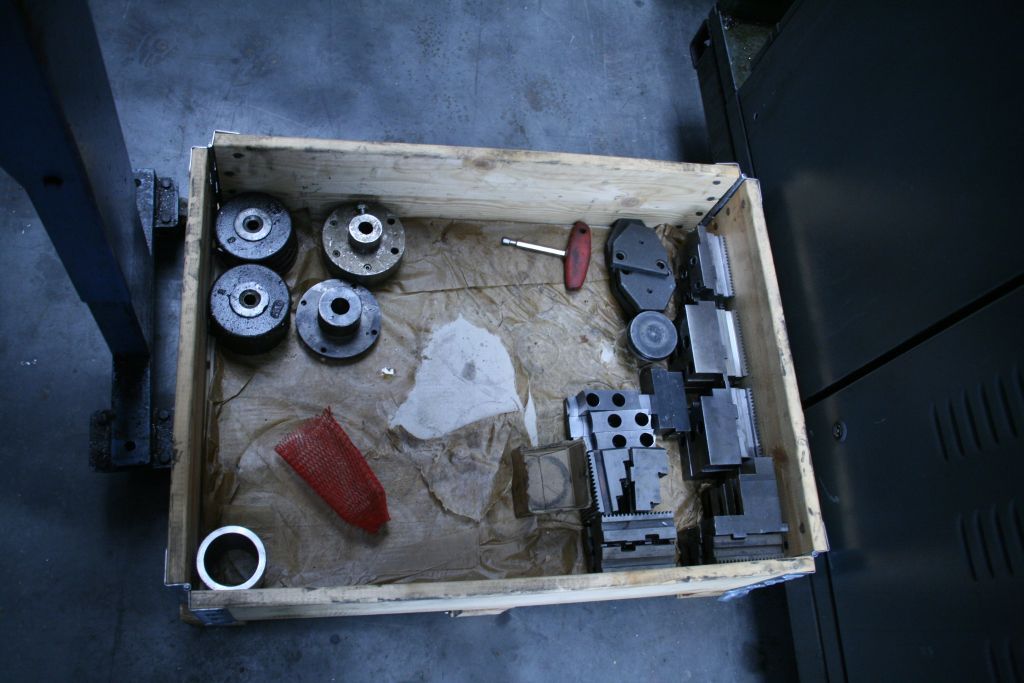

Additional Equipment:		live & fixed tooling

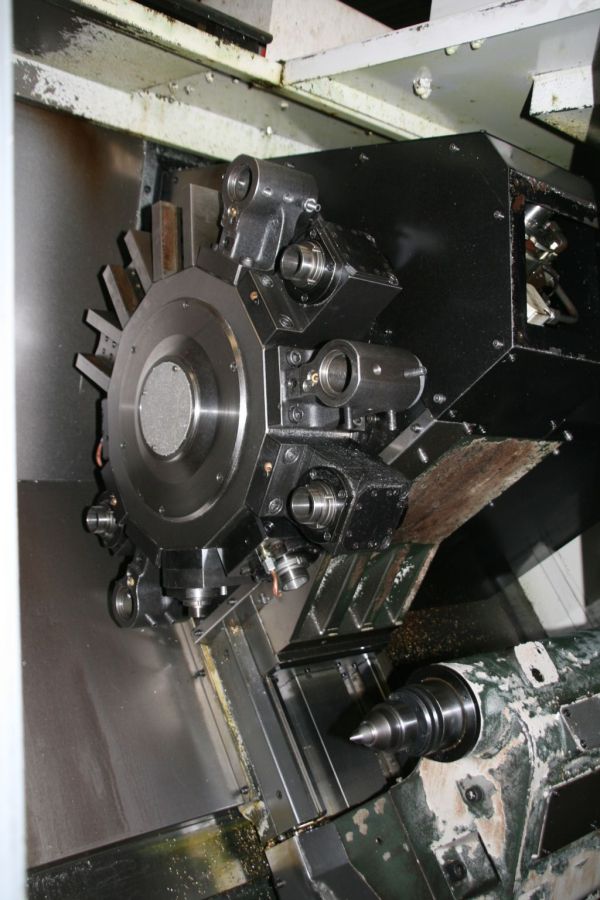

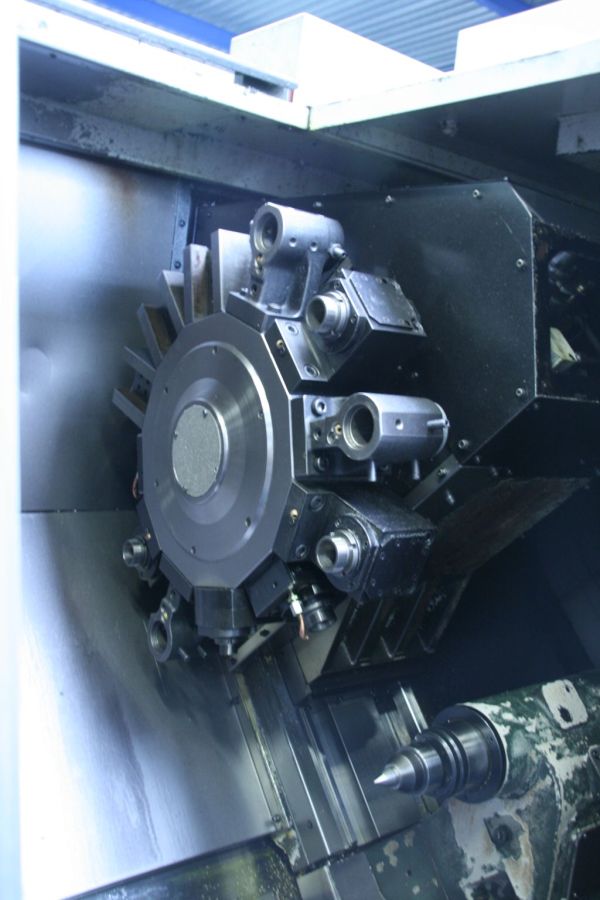

Turret Positions:		12 Station
Maximum Cutting Length:		530mm

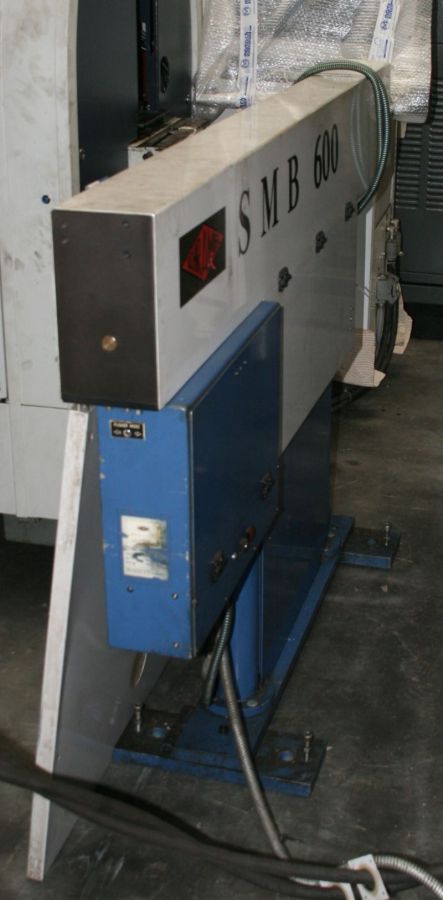

Description:		C axis & Milling, Swarf conveyor, Tool setter, Coolant, Y-Axis, Tailstock, Low Volt Light, Magazine Barfeed

This machine is offered Ex works, loaded free on Lorry, Payment before collection/Delivery. (Subject to no prior sale.)
