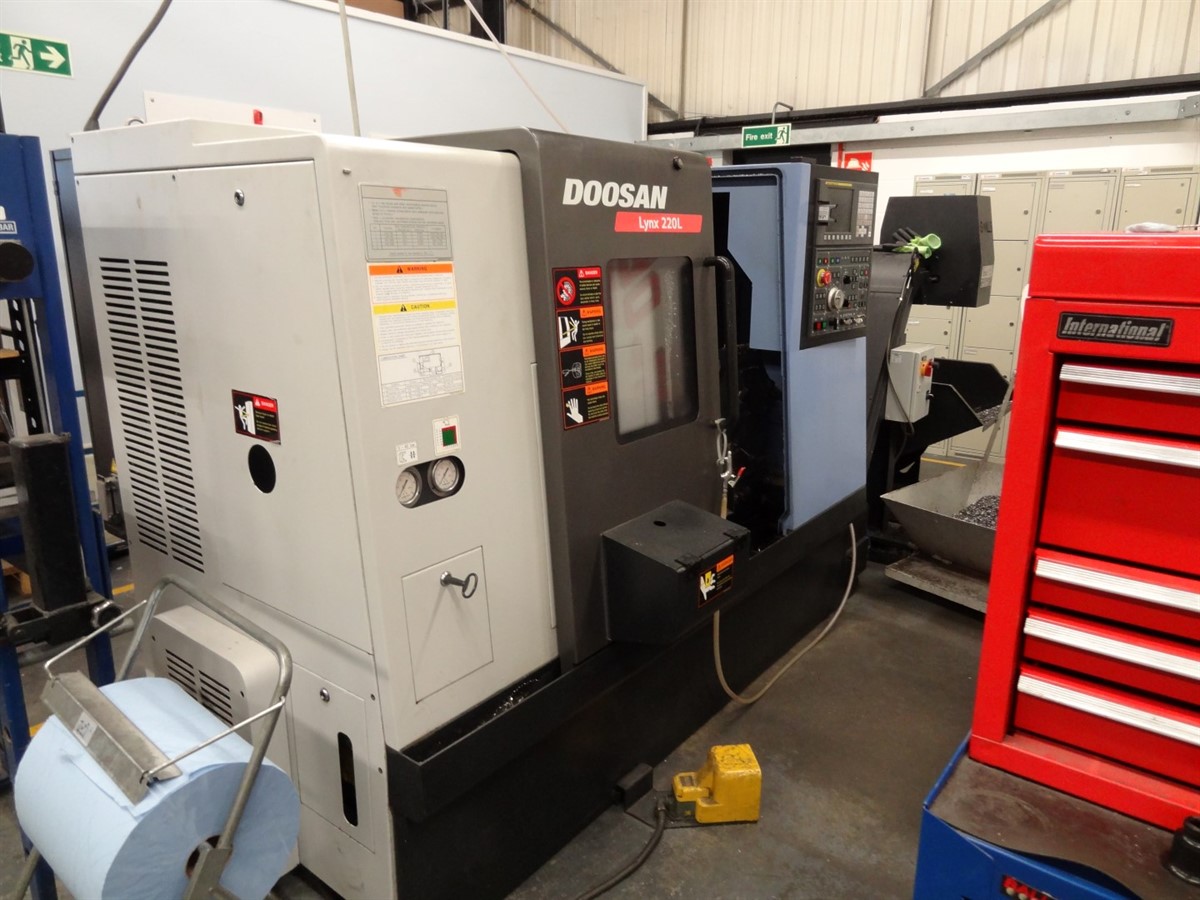

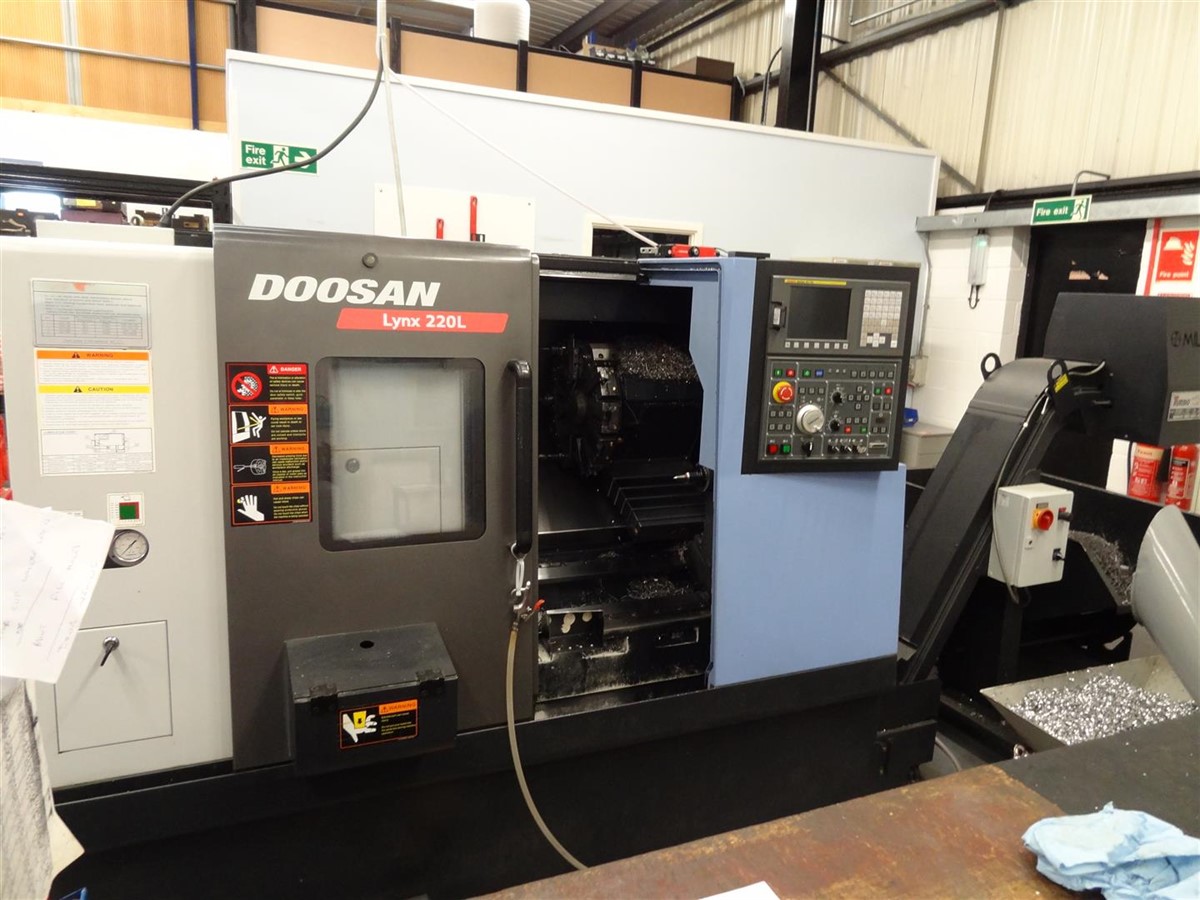

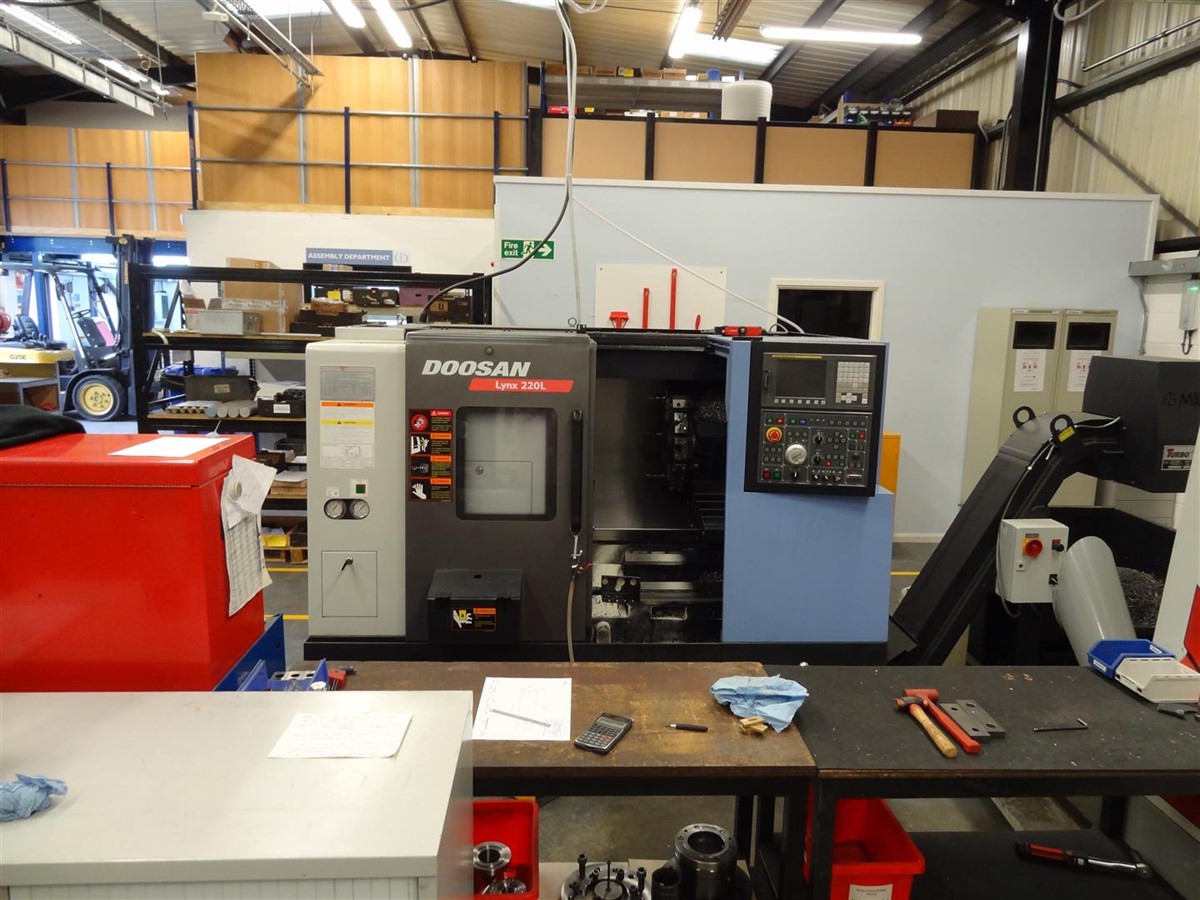

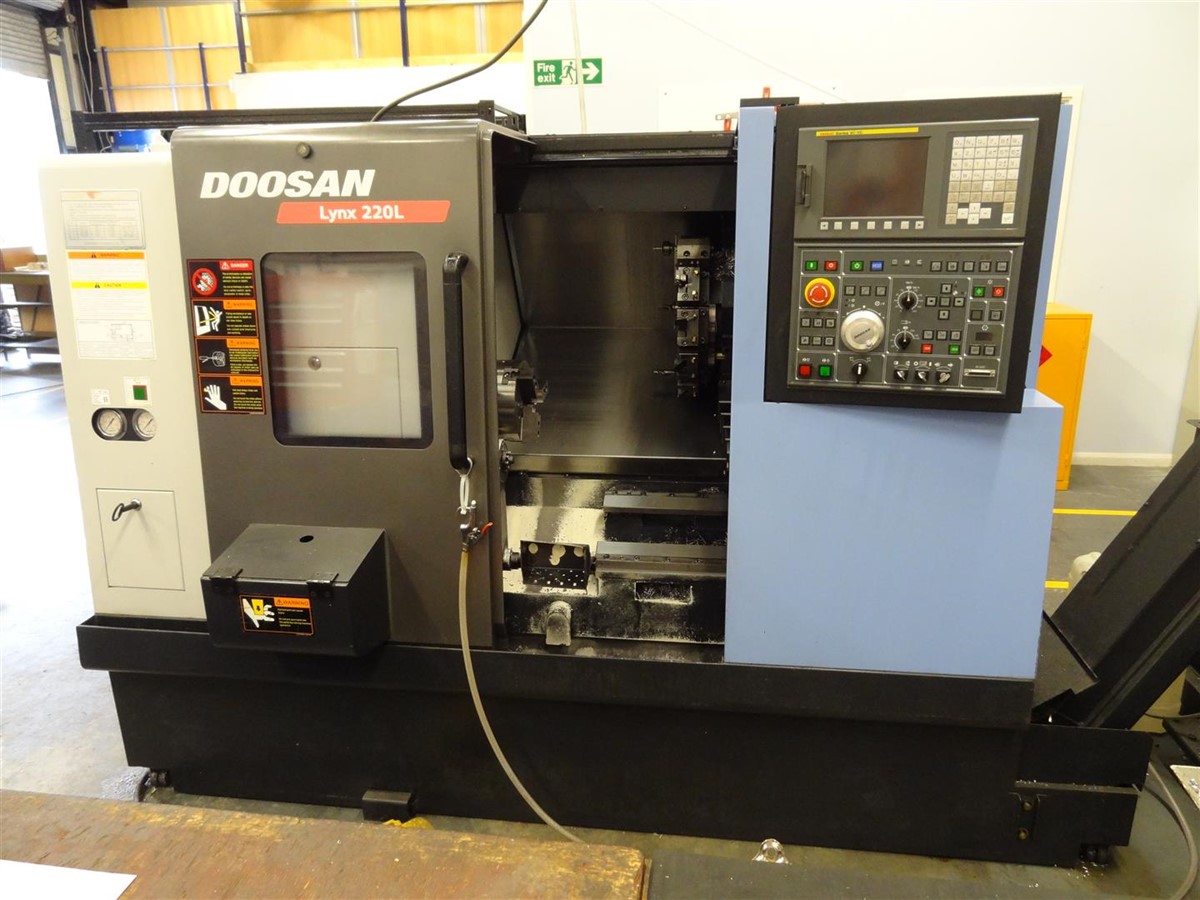

Doosan Lynx 220LC



Year:		2007
Make:		Doosan
Model:		Lynx 220LC
Bar Capacity:		65mm

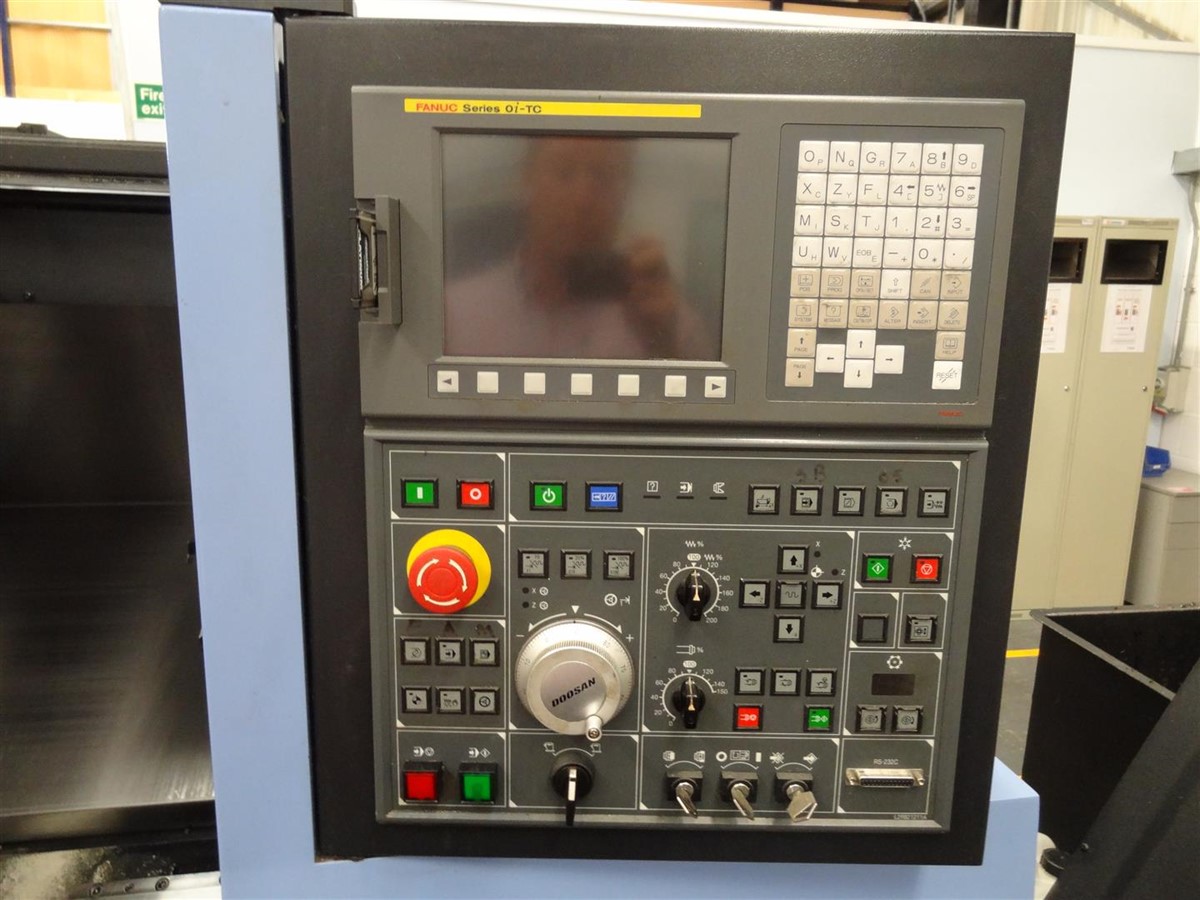

Control:		FANUC OiT
Machine Dimensions L x D x H:		3325 x 1600 x 1655mm
Machine Weight:		3500kg
Maximum Cutting diameter:		320mm
Maximum Cutting Length:		525mm
Rapid Feedrates:		XZ : 30 x 36m/minute

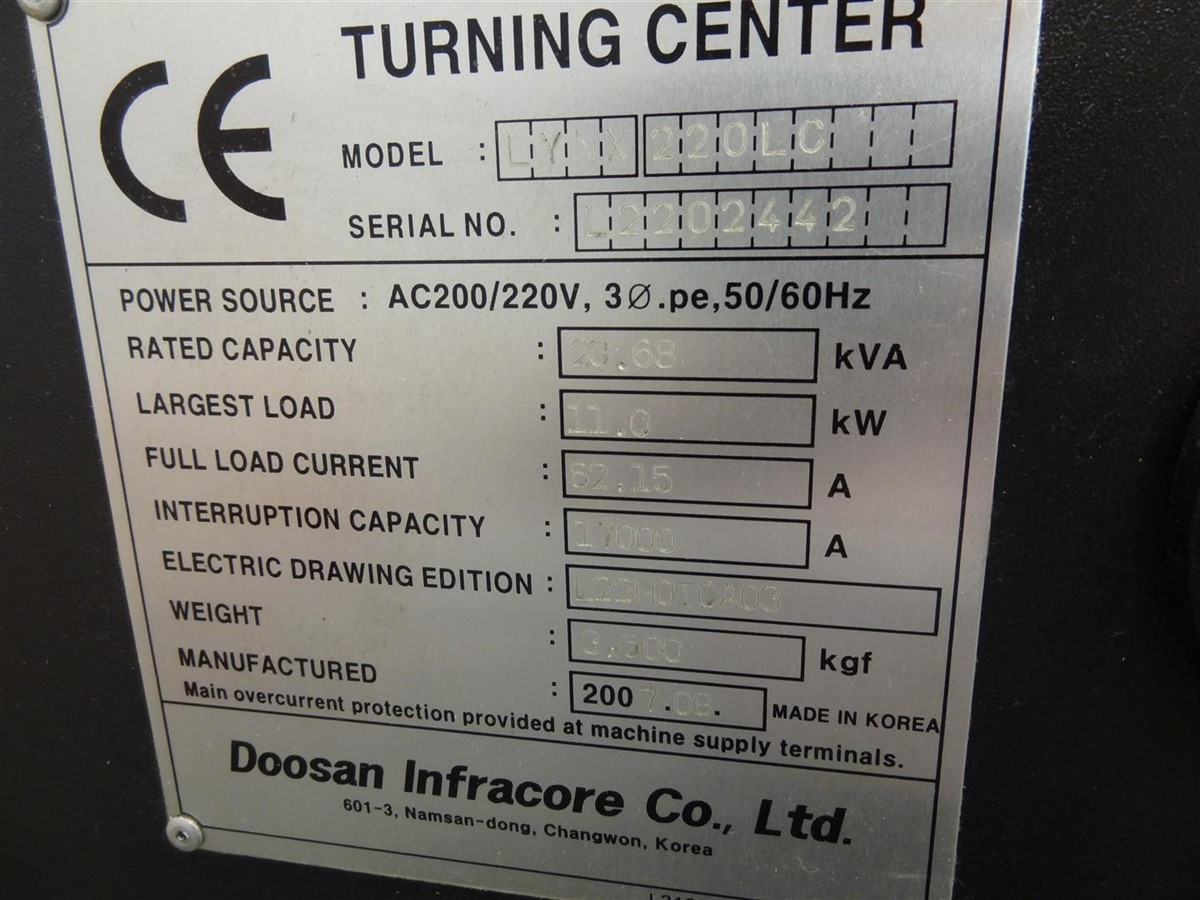

Serial Number:		L2202442
Spindle Motor Power:		15kW
Spindle Nose:		A2-6
Spindle Speed:		4000rpm
Swing:		510mm
Swing Over Carriage:		290mm
Tailstock Quill Stroke:		80mm
Tailstock Taper:		MT#4
Tool Size:		25mm
Turret Positions:		12 Station
Description:		Tool setter, Coolant, Tailstock, Interlocked guards, Low Volt Light, Collet Chuck, Parts Catcher, Swarf Conveyor

This machine is offered Ex works, loaded free on Lorry, Payment before collection/Delivery. (Subject to no prior sale.)
