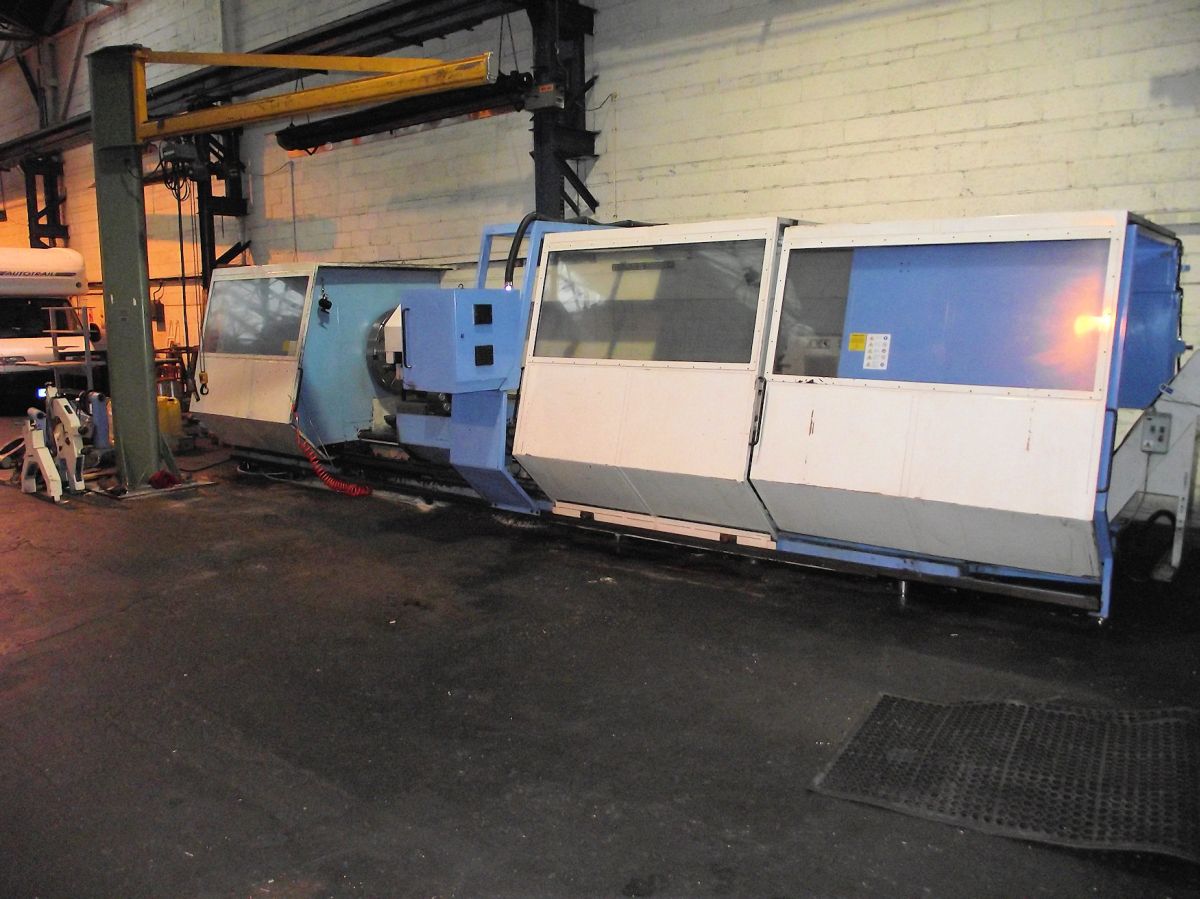

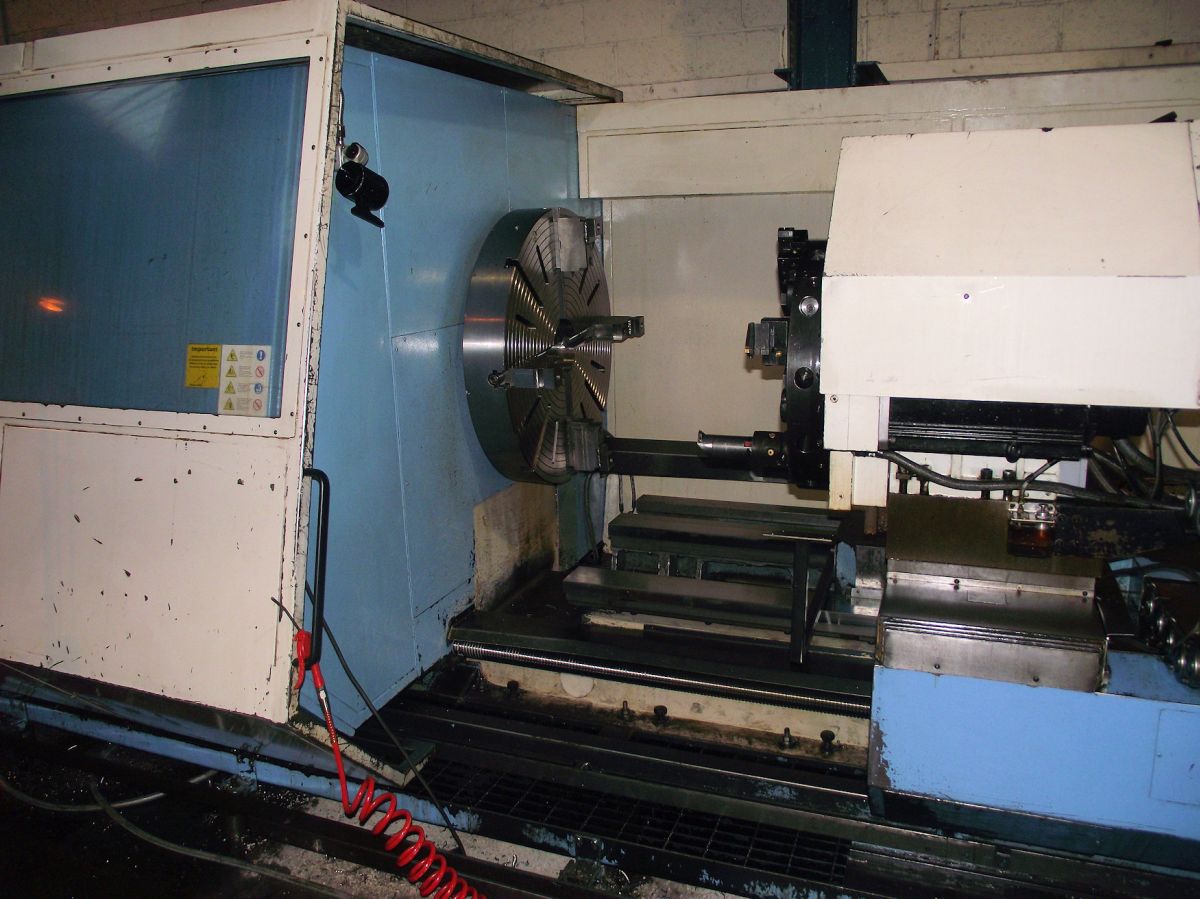

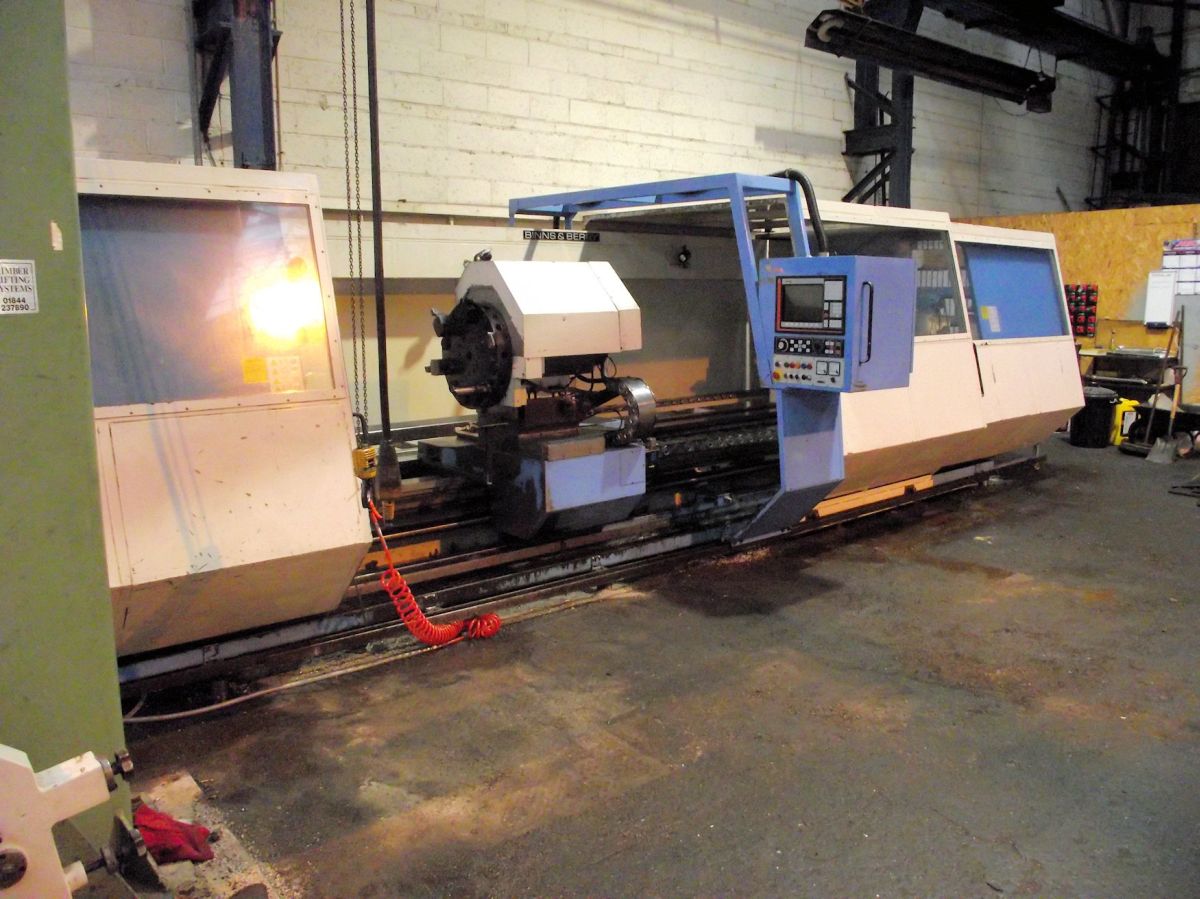

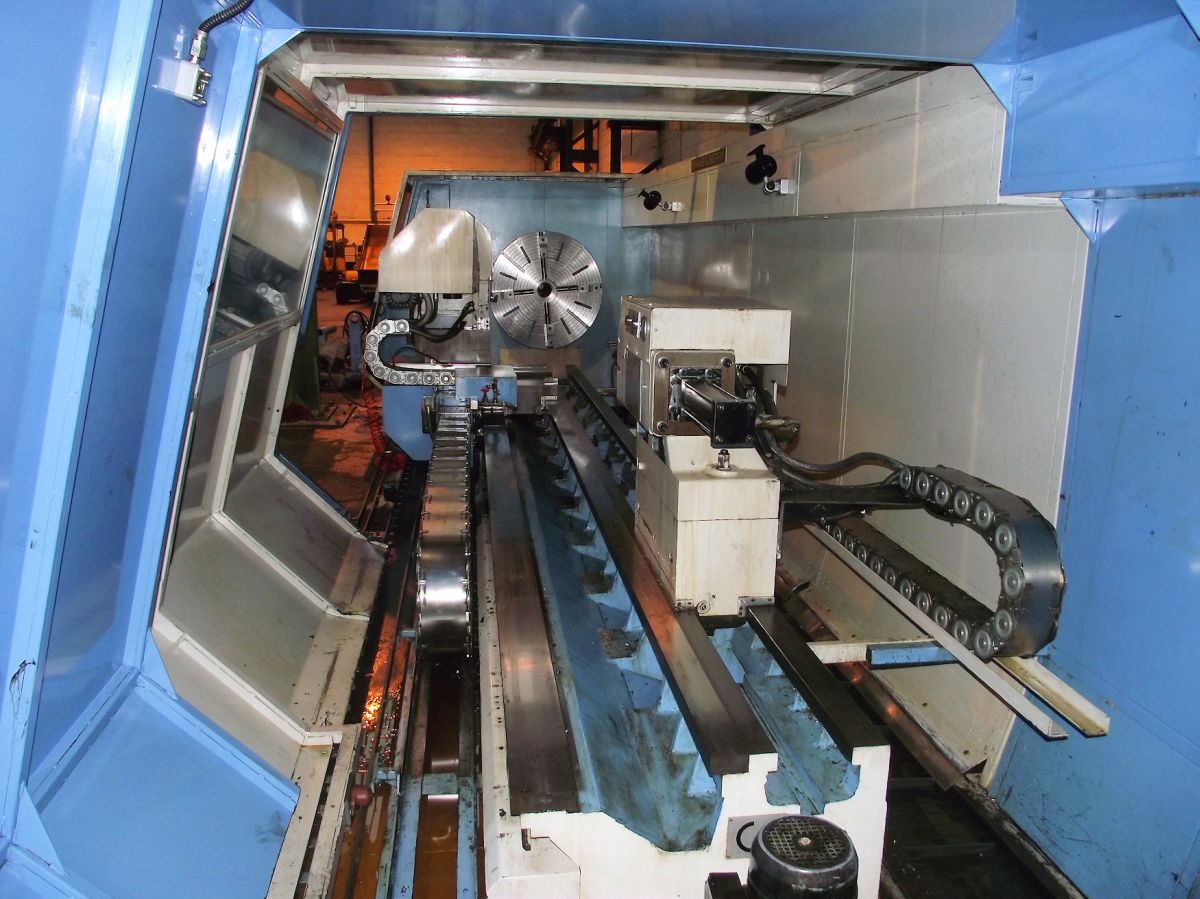

BINNS and BERRY DATA 90 CNC



Year:		1997
Make:		Binns & Berry
Model:		Data 90 CNC
Machine Weight:		13000kg
Machine Dimensions L x D x H:		9500 x 4450mm
Swing:		1040mm

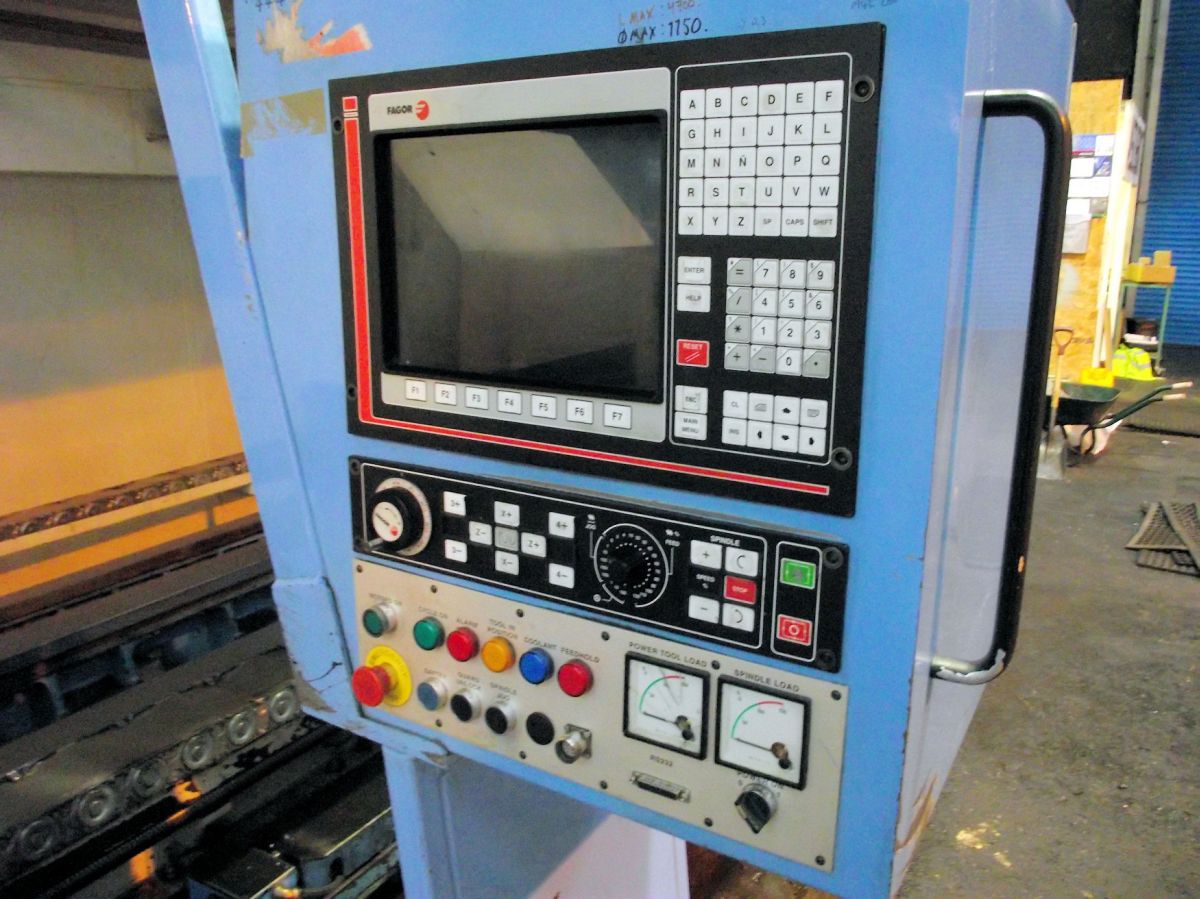

Control:		FAGOR 8050
Y axis Travel:		+/- 68mm
Spindle Bore:		104mm
Distance Between Centres:		5000mm
Swing over the Cross-slide:		850mm

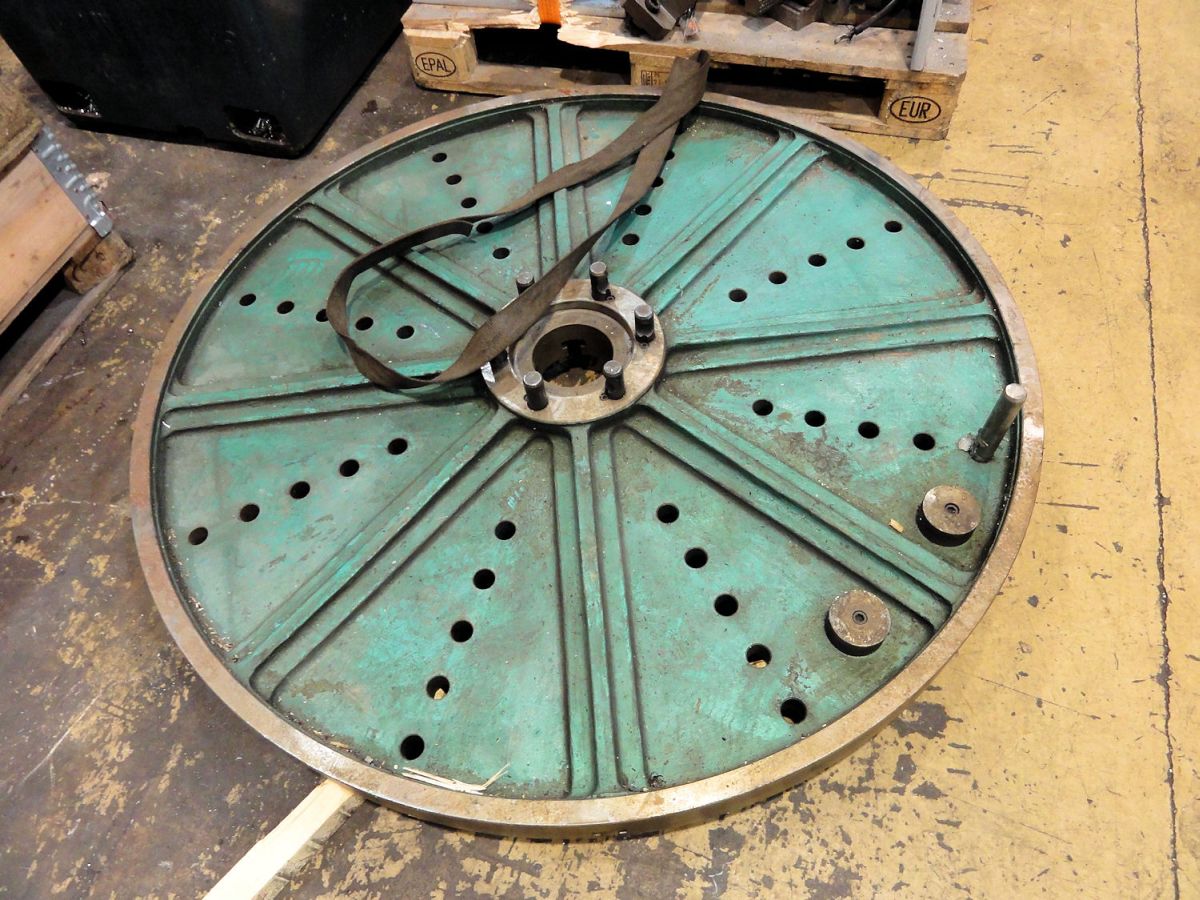

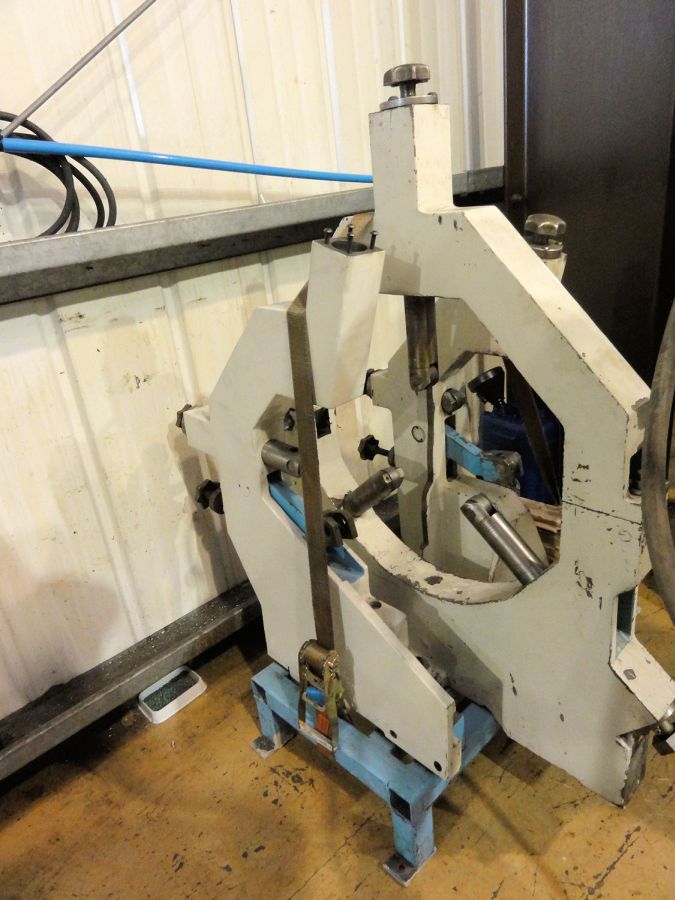

Additional Equipment:		2 Open Steadies 1 Closed Steady, faceplate,
Turret Positions:		12 Station
Driven Tools Max Spindle Speed:		2500 rpm
Main Motor:		37kW

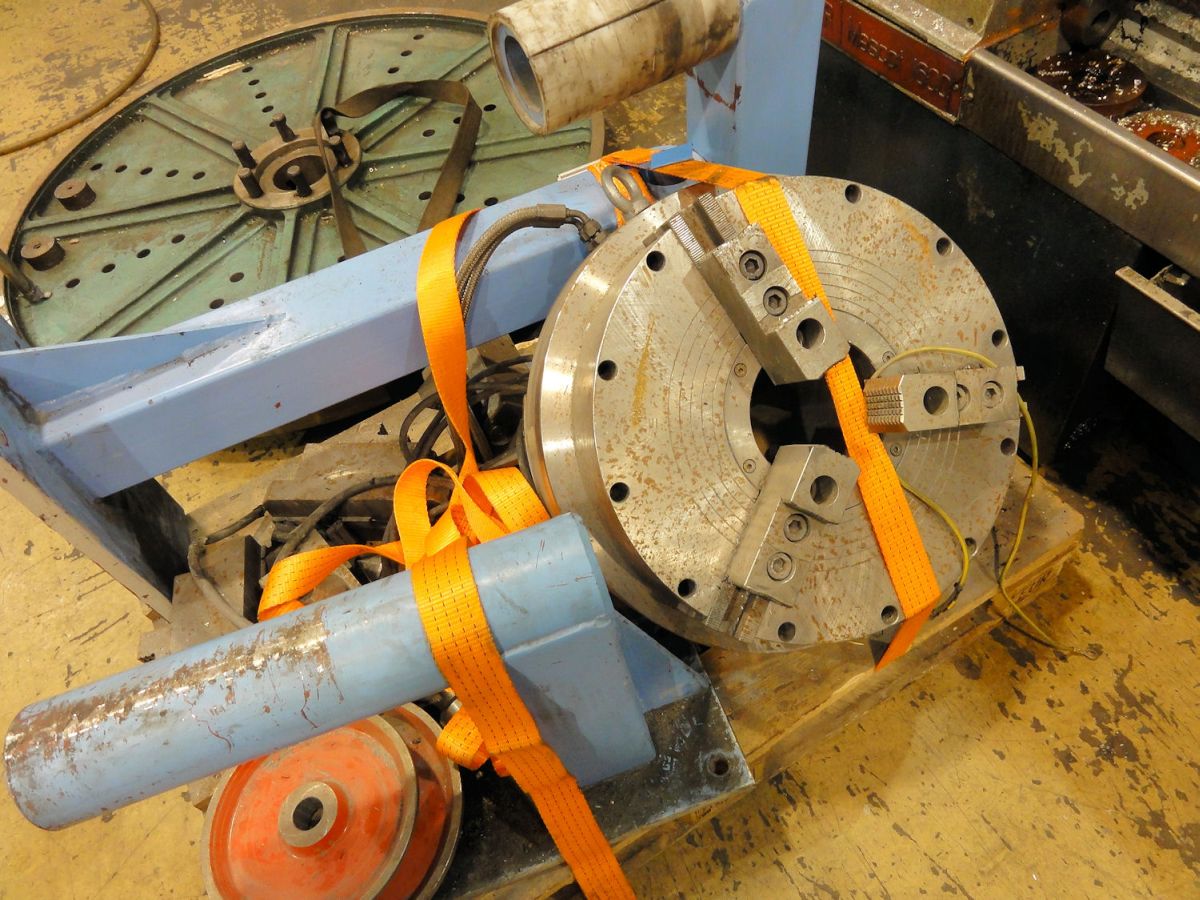

Description:		C axis & Milling, Swarf conveyor, Y-Axis, Tailstock, 3 Jaw Chuck, 4 Jaw Chuck, Tooling, C axis

This machine is offered Ex works, loaded free on Lorry, Payment before collection/Delivery. (Subject to no prior sale.)
